VESTA-029

WTRQ Series

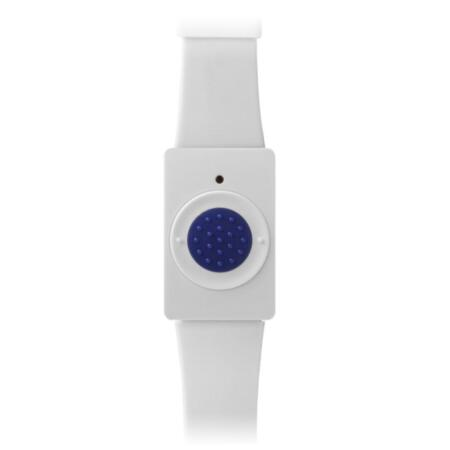

Emergency Pendant / Wrist Transmitter

VESTA-029 Specification

Easy & Exchangeable Belt / Neck Cord styles

Long battery life

Waterproof

The Wrist Transmitter/Emergency Pendant is designed to be worn by seniors as they move on the premises. In an emergency, help is merely a button press away.

The WTRQ Series include the following models:

Model Name
WTRQ
WTRQ2
WTRQ3

Active Button

• Pressing the Active Button for more than 1 sec will activate the Control Panel, causing it to dial emergency call or alarm.

• Press and hold the Active Button for 8 seconds to send a Cancel Code to the Control Panel. (This function is not compatible with every control panel).

LED indicator

Flashes three times: When Auto Low Battery detection function is enabled. (WTRQ2 & WTRQ3)

Learn in the Transmitter

Step 1. Put the Control Panel into the learning mode.

Step 2. Press the Button on the Transmitter, a radio signal will be transmitted to the Control Panel.

Step 3. Please refer to the operation manual of your Control Panel to complete the learning process.

Battery Life

The Transmitter uses one CR2032 3V Lithium battery as its power source.

Every time the Active Button is pressed, the Wrist Transmitter will check the battery voltage. If low battery is detected for 3 times successively, the Wrist Transmitter will enter low battery status and transmit Low Battery signal along with regular signal every time the button is pressed.

Note:

A 30-second interval is required between each Active Button press to check the battery voltage again.

Switching Between Wrist Band/Neck Cord

Step 1. Take off the Wrist Band on the Transmitter.

Step 2. Clip the hook onto the Transmitter.

Step 3. Thread Neck cord through the hook.

Auto Low Battery Detection

The Wrist Transmitter features Auto Low Battery detection function. The Wrist Transmitter will automatically check battery voltage every 16-24 hours. If low battery is detected for 3 times successively, the Wrist Transmitter will enter low battery status and transmit low battery signal every 12 hours.

Compliance with Standards

Complies with the requirements of the Radio Equipment Directive 2014/53/EU

Electromagnetic Compatibility Directive 2014/30/EU, Low Voltage Directive 2014/35/EU

Safety: EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013

EMC: EN 50130-4:2011+A1:2014

EN 301489-1:V2.2.0:2017

EN 301489-3:V2.1.1:2017

Radio: EN 300220-1:V3.1.1:2017 EN 300220-2:V1.1.1:2017

EN 300220-3-1:V1.1.1:2017

EN 300220-3-2:V1.1.1:2017

FCC Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that may cause undesired operation.

FCC Caution:

To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance may void the user's authority to operate this equipment. (Example - use only shielded interface cables when connecting to computer or peripheral devices).
