# NVR7232-IO-PRO

## 32-channel Ultra AI Series IP NVR

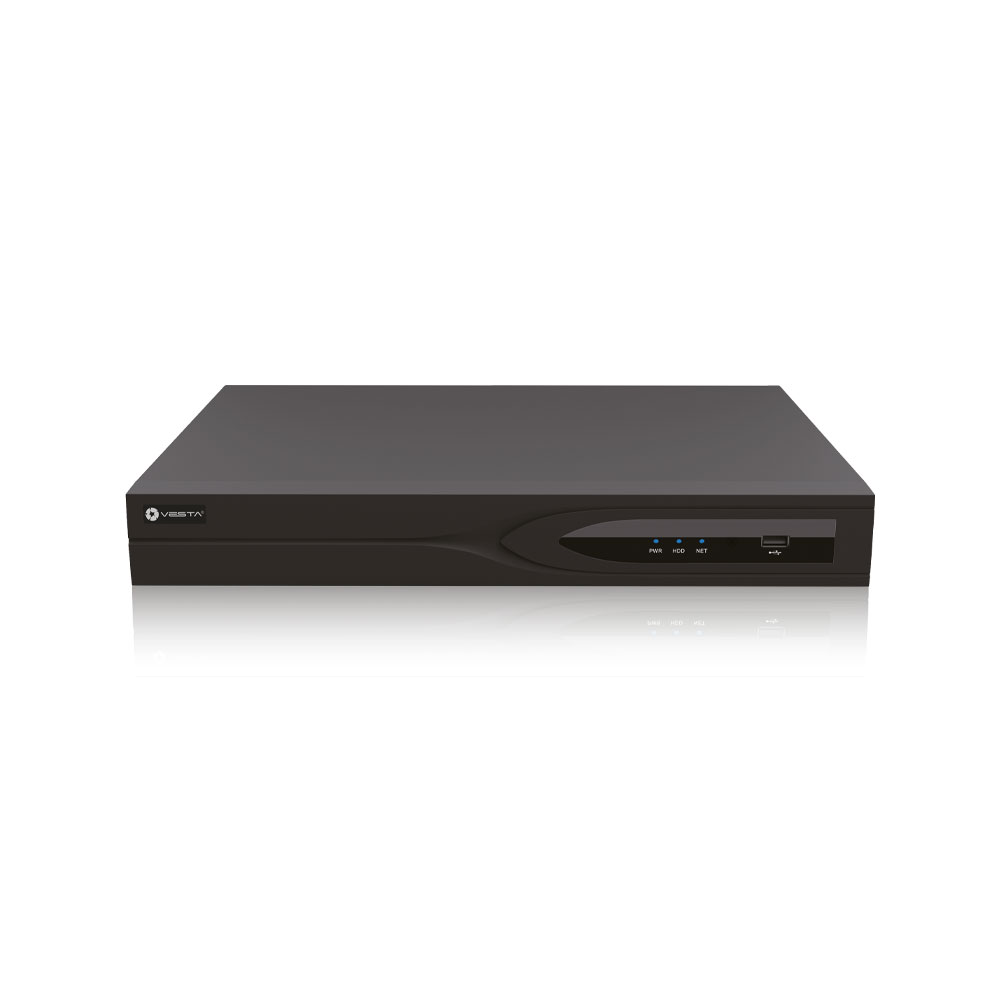

<figure><img src="https://1580875003-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FZJzpNocHhYVmD43GZobR%2Fuploads%2FzL3zZuiW7f9dGiEW5jQt%2Fimage.png?alt=media&#x26;token=3a4babed-1893-46f6-8bd4-8f1dcd65e5ae" alt="" width="375"><figcaption><p>NVR7232-IO-PRO</p></figcaption></figure>

<figure><img src="https://1580875003-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FZJzpNocHhYVmD43GZobR%2Fuploads%2FMqB2uG1RDL3fXRoxPy0u%2Fimage.png?alt=media&#x26;token=77f00b98-dc97-42bb-b4ed-7b0a060e6e5b" alt=""><figcaption></figcaption></figure>

### Specifications

* 32 IP channels
* Video compression: H.265 and H.264
* Simultaneous video outputs of 2 HDMI (4K) and VGA (1080P)
* Output division: 1, 4, 9, 16, 25, 32
* 1 input / 2 RCA audio outputs
* Bi-directional audio
* Audio compression: G.711a
* Recording resolution up to 8MP (3840x2160)
* Bandwidth: 384 Mbps in, 384 Mbps out
* Decoding capacity:
  * 8 channels at 8MP (30 fps)
  * 32 channels 1080P (30 fps)
* Supports adaptive decoding
* Manual, scheduled recording modes (general, videosensor, alarm, intelligence)
* Alarm link: Recording, Image capture, Buzzer, Log, Preset, Email
* Supports image capture in JPEG format
* Artificial Intelligence from intelligent cameras:
  * Perimeter protection (intrusion, line crossing).
  * Face detection
  * Object detection
  * Intelligent motion detection
* Artificial Intelligence in the recorder:
  * Perimeter protection (intrusion, line crossing): Up to 4 channels
  * Face detection: Up to 4 channels
  * Face recognition: Up to 2 channels (20 face databases with a total of 100,000 faces)
  * Intelligent motion detection: Up to 8 channels
* AI search by target classification (people, motorized vehicles and non-motorized vehicles)
* Synchronized playback of up to 16 channels
* 16 alarm inputs / 8 alarm outputs
* Internal capacity for 2 SATA HDD up to 16TB (sold separately)
* eSATA port
* 2 RJ45 Gigabit Ethernet network ports (10/100/1000Mbps)
* Network protocols: HTTP, TCP/IP, IPv4, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, DDNS, FTP, P2P, Auto register
* Onvif and SDK support
* Compatible with IE, Edge, Chrome, Firefox web browser
* Compatible with Android and iOS devices
* Communication ports: 4 USB 2.0 ports, 1 USB 3.0 port, 1 RS232 port and 1 RS485 port
* Power supply: 12V DC, 3 A
* Power consumption: 20 W (excluding hard disk)
* Operating temperature from -10°C \~ +55°C
* Relative humidity 10%\~90% (non-condensing)
* Metal housing
* Dimensions: 360 (W) x 48 (H) x 311.5 mm (1U)
* Weight: 3 kg
* Desktop installation
* CE/FCC certified
